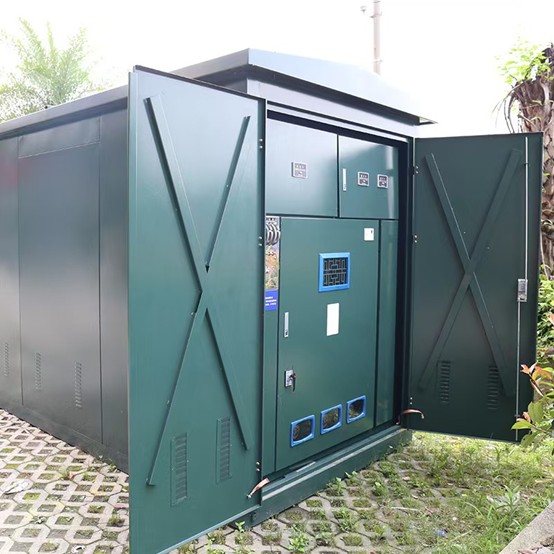

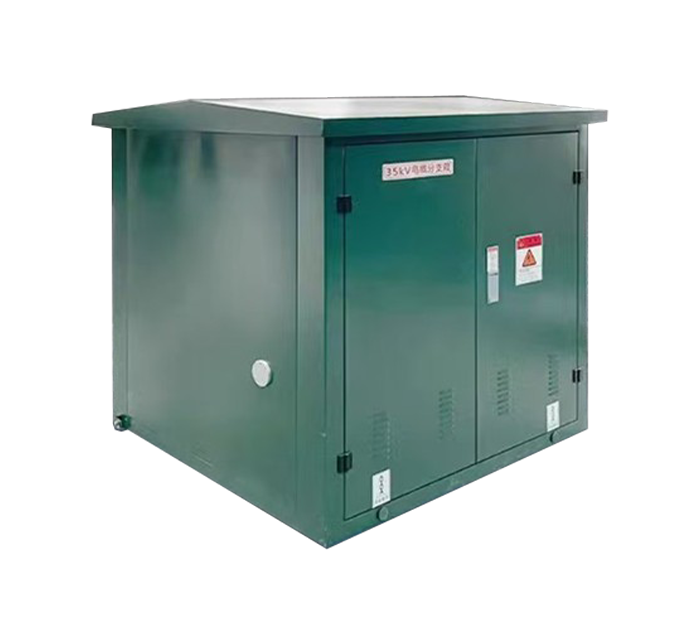

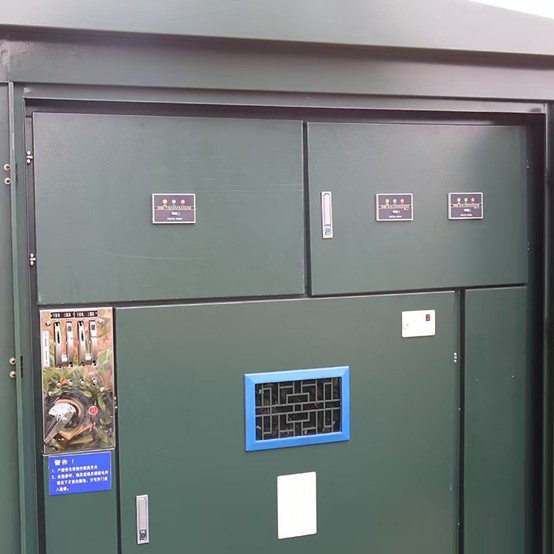

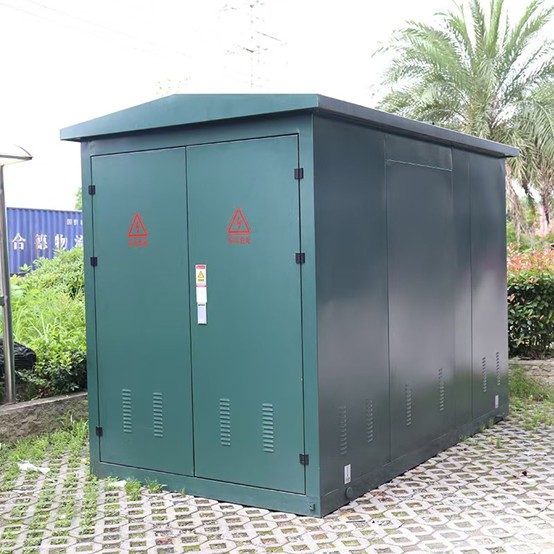

35kv cable branch box

DFW/35KV

Description

Installation

Main Functions
It distributes high-voltage incoming or low-voltage outgoing power cables, facilitating line operation, maintenance, and management. It also connects power cables to box-type transformers, load switch cabinets, and ring network power supply units, providing tapping, branching, relaying, or conversion functions.

Main Features
It features an outdoor design (also suitable for indoor use) and a fully sealed structure. It offers "five-proof" safety features and is maintenance-free, providing reliable personal safety. It is highly adaptable to various environments, resisting dust, moisture, flooding, and corrosion. Flexible configurations accommodate various wiring requirements. Furthermore, it features a compact structure, small size, minimal footprint, and simple installation.

Technical Parameters
The rated voltage is generally 35kV, with 40.5kV also available. Common rated currents include 200A, 400A, 630A, 1000A, and 1250A. The rated frequency is 50Hz. The number of cable branch circuits is 2-6. The rated dynamic stability current (peak) is 50kA. The rated lightning impulse withstand voltage is 185kV. The power frequency withstand voltage (1 minute) is 95kV.

Operating Conditions
Altitude not exceeding 2000m; operating temperature between -30°C and +40°C, with a daily average relative humidity not exceeding 95% and a monthly average not exceeding 90%; no frequent severe vibration; wind speed not exceeding 34m/s; no significant contamination from corrosive or flammable gases, water vapor, or other pollutants.
