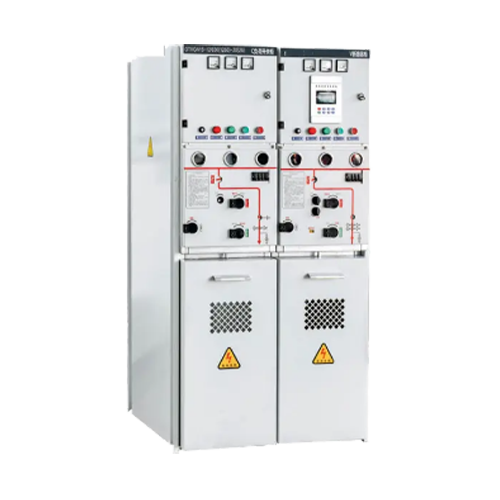

GTXGN-12 series solid insulated ring network cabinet is a fully insulated, fully sealed, and maintenance-free solid insulated vacuum switchgear. All high-voltage live parts are molded with epoxy resin material with excellent insulation performance, and the vacuum interrupter, main conductive circuit, insulating support, etc.

GTXGN-12 series solid insulated ring network cabinet is a fully insulated, fully sealed, and maintenance-free solid insulated vacuum switchgear. All high-voltage live parts are molded with epoxy resin material with excellent insulation performance, and the vacuum interrupter, main conductive circuit, insulating support, etc. are organically combined into a whole, and the functional units are connected by a fully insulated solid busbar. Therefore, the entire switchgear is not affected by the external environment, and the reliability of the operation of the device and the safety of the operator can be ensured. Because the product has the advantages of full insulation, full sealing, and full shielding, it is especially suitable for use in areas with high altitude, high temperature, mixed heat, severe cold, and severe pollution.

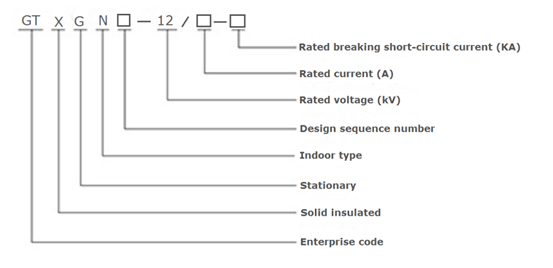

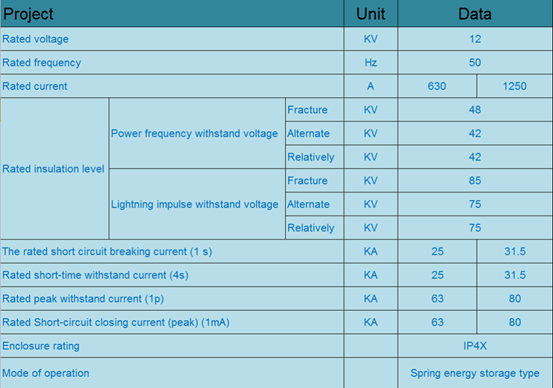

Circuit breaker technical parameters

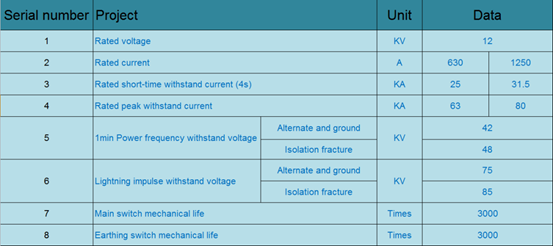

Isolation grounding switch technical parameters

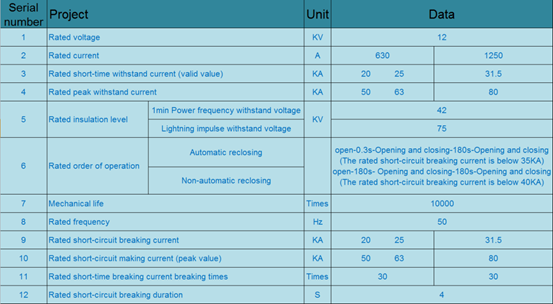

Switchgear Technical Parameters

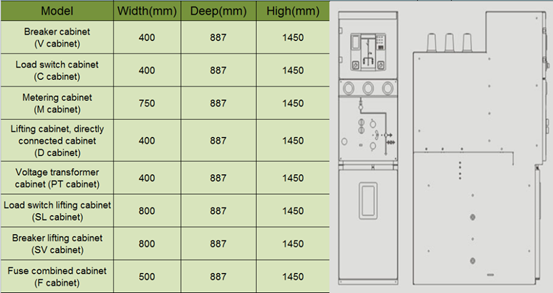

Model	Width(mm)	Deep(mm)	High(mm)
Breaker cabinet (V cabinet)	400	887	1450
Load switch cabinet (C cabinet)	400	887	1450
Metering cabinet (M cabinet)	750	887	1450
Lifting cabinet, directly connected cabinet(D cabinet)	400	887	1450
Voltage transformercabinet (PT cabinet)	400	887	1450
Load switch lifting cabinet(SL cabinet)	800	887	1450
Breaker lifting cabinet (SV cabinet)	800	887	1450
Fuse combined cabinet (F cabinet)	500	887	1450
