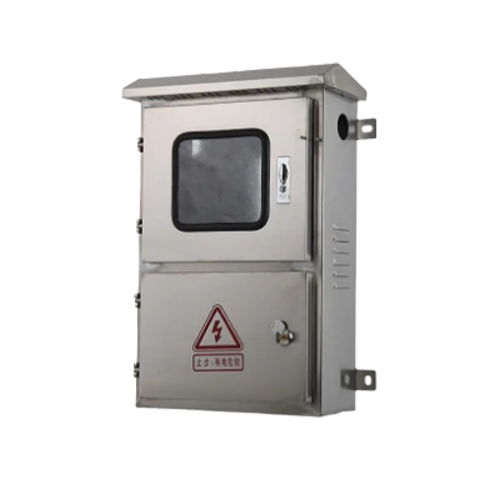

KCJXF 220V 380V 3-200KW
Single-Phase Three-Phase Photovoltaic Grid-Connected Distribution Box
- Description
- Installation
- Inquiry
For large-scale PV grid-connected power generation system, in order to reduce the connection between the PV module and the inverter, and to facilitate maintenance to improve reliability,it generally need to add DC busbar device between the PV module and the inverter.
Product Description
Our company's PV array lightning protection combiner box is designed to meet this requirement and can be designed to a complete PV power generation system solution with PV inverter products. Using PV combiner box, the user can put certain number of same specifications PV modules into series PV module according to input DC voltage range of the inverter, and then a number of series PV modules access to the PV array lightning protection box.It's convenient to facilitate the post-inverter through the output for lightning protection device and circuit breaker.
Product technical parameters
Product
model
KCJXF
(single phase)
KCJXF
(three-phase)
Installed
power
3KW-20KW
3KW-200KW
The
number of inverter input channels
1
way/2way/3way/4way(It is recommended to use a combiner box as above)
Grid-connected
output channels
1
way
Grid
connection requirements
Single-phase/three-phase
grid connection
Grid-connected
voltage
AC:220
AC:380
Switching
capacity
20A-100A
32A-400A
Protective
function:
Have
Short
circuit protection
Have
Overload
protection
Have(Nominal
current: In: 20KA, Imax: 40KA, Up≤4KV)
Isolation
Protection (Visual Breakpoints)
Have(knife
switch/hand-pull disconnector)
Overvoltage
and undervoltage protection
Have
Automatic
reclosing
Have
Grid-connected
switch:
Self-resetting
overvoltage and undervoltage protector (optional) 40A~125A
1.
When the power grid is powered off or the bias voltage is greater than 20%,
it will automatically disconnect (internal disconnection);
Photovoltaic
special small reclosing circuit breaker (optional) 20A~100A
1.
When the power grid is powered off or the bias voltage is greater than 20%,
it will automatically open (operating handle action);
Plastic
case recloser (optional) 40A~400A
1.
When the power grid is powered off or the bias voltage is greater than 20%,
it will automatically trip (the delayed tripping time is adjustable from
0-10S);
Applicable
environment:
Temperature,
humidity
Working
temperature: -25 to +60 °C Storage temperature: -40 to +70 °C, humidity:
0-90% no condensation; no corrosive gas place (if any, please specify)
Use
altitude
≤3000M
Salt
spray resistant
Standard
salt spray test 336 hours
General
parameters:
Box
material
Stainless
steel, cold-rolled plate spray, stainless steel spray, glass fiber reinforced
plastic (SMC), transparent plastic box
Protection
class
Outdoor
IP45/IP55/IP65
Box
type
Double
door with meter (power distribution bin, metering bin) single door without
measuring bin (optional)
Installation
method
Wall-mounted
Box
size (L*W*H)
Customized
on demand
2. When the power grid returns to normal, it will automatically pull in
(internally connected)
2. When the power grid returns to normal, it will automatically close
(operating handle action)
3. Manual operation and automatic operation can be switched
4. Check the voltage closing
2. When the power grid returns to normal, it will automatically close
3. Manual operation and automatic operation can be switched
4. Check the voltage closing
5. Phase loss protection, zero-break protection
(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;
(2) access PV array, each with 15A, 1000Vdc fuse (replaceable other grades);
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;
(4) Positive, negative string into the fuse;
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;
Environment condition
1. Ambient air temperature: -5~+40 and the average temperature should not exceed +35 in 24h.
2. Install and use indoors. Altitude above sea level for operation site should not exceed 2000M.
3. Relative humidity should not exceed 50% at max temperature +40. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20. But in view of the temperature change, it is possible that moderate dews will produce casually.
4. Installation gradient not exceed 5.
5. Install in the places without fierce vibration and shock and the sites insufficient to erode the electrical components.
6. Any specific requirement, consult with manufaz
