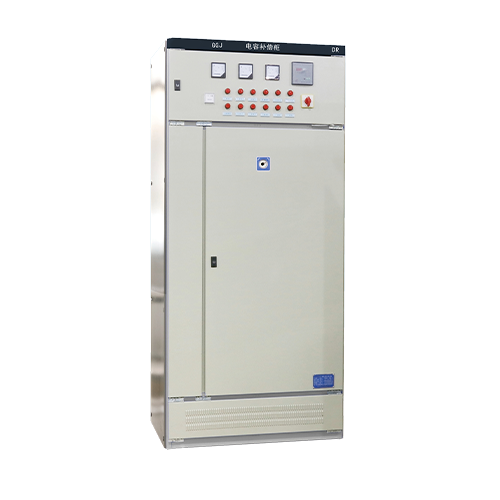

GGJ low-voltage power distribution reactive power compensation integrated cabinet is a new type of outdoor power distribution reactive compensation integrated cabinet designed by the principles of safety, economy, reasonableness, and reliability. Applicable to city network, rural power network transformation, industrial and mining enterprises, street lighting, residential quarters, etc. AC 50Hz (60Hz), rated voltage 380V (can be customized according to local national standards), with power distribution, control, protection, Multi-functional outdoor integrated distribution box with reactive power compensation, electric energy metering, etc., and can also add leakage protection function according to user requirements.

Product Description

The product has the advantages of novel structure, reasonable structure, high protection level, convenient installation and debugging, maintenance and overhaul. The product complies with GB7251.1-1997, GB/T15576-2008, and has passed the 3C certification. It is an ideal low-voltage complete set in the current power grid transformation. GGJ series power distribution reactive compensation cabinet is suitable for electric energy distribution, metering, protection, and reactive power automatic compensation of 0.4kV voltage level.

Model Description

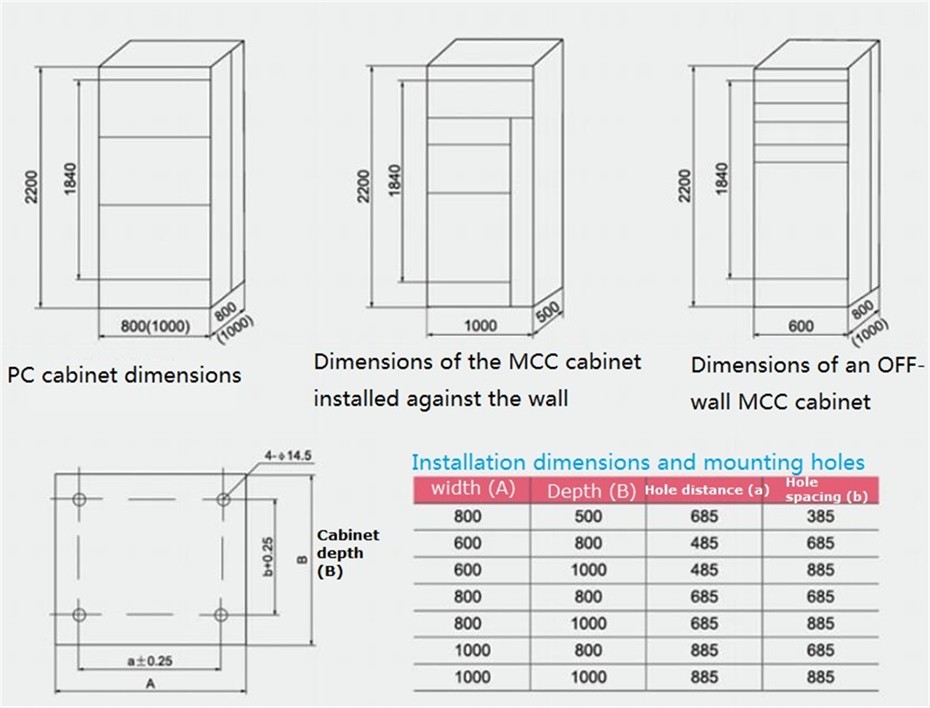

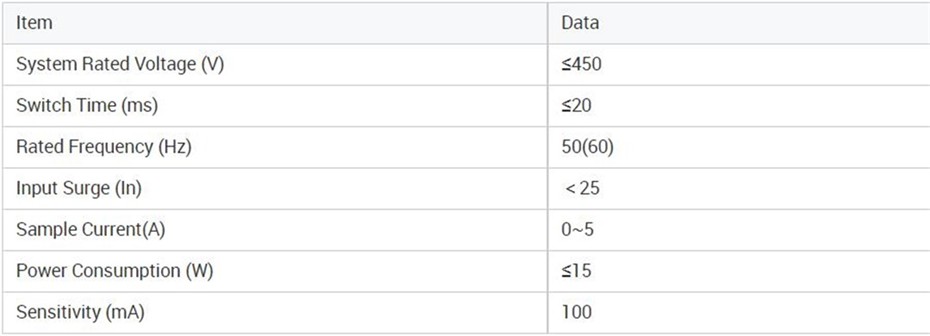

Technical parameters and external dimensions

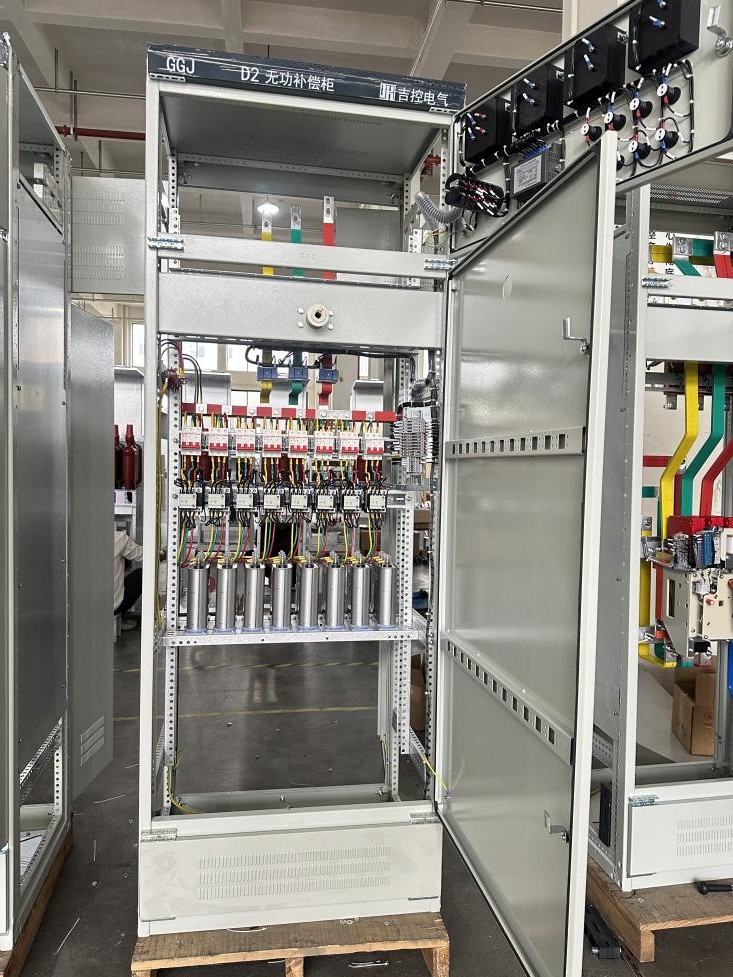

Product structure features

1.Intelligent controller control,full-featured.Reliable performance automatic compensation; can increase the power factor to 0.9 or more;

2.real-time display power grid power factor, display range: lag(0.00-0.99), ahead (0.00-0.99);

3.with over-voltage, harmonic, over compensation, system failure, lack of phase, overload and other comprehensive protection;

4.memory has be set parameters, the system will not lose the parameters after powerfaitr the grid back to normal antomatically enter the rumning state, on persnmne on duty;

5.According to the grid load balancc, to take the phase compensation or mixed compensation;

6.anti-interference ability, can withstand the directimput from the grid amplitude of 200V interference pulse, higher than the national profssional standards

Environment condition

Ambient air temperature: -5~+40 and the average temperature should not exceed +35 in 24h.
2. Install and use indoors. Altitude above sea level for operation site should not exceed 2000M.
3. Relative humidity should not exceed 50% at max temperature +40. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20. But in view of the temperature change, it is possible that moderate dews will produce casually.
4. Installation gradient not exceed 5.
5. Install in the places without fierce vibration and shock and the sites insufficient to erode the electrical components.
6. Any specific requirement, consult with manufactory.
